UF PROJECTION TOOL

Calculate the optimal number of Ultrafiltration (UF) modules for your water treatment project.

UF PROJECTION TOOL

Start Here USER MANUAL

*Updated November 2024

UF NORMALIZATION SHEET

Toray UF Normalization sheet was created to normalize and graph UF operating data. This sheet allows temperature correction, permeability calculations, and unit conversions. UF operation conditions can be evaluated effectively by this sheet.

Introduction for use

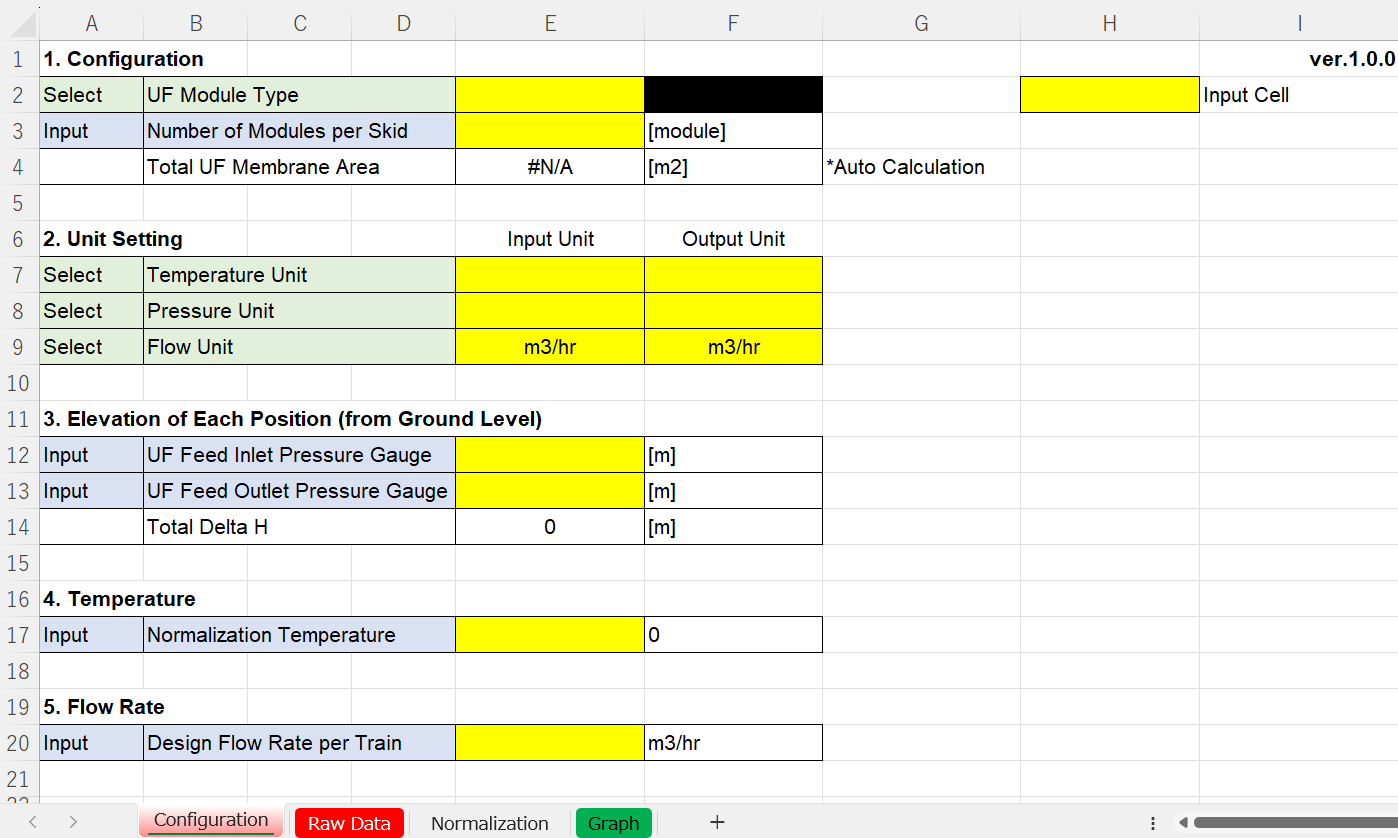

1.Configuration Sheet:
Enter the required information in the yellow cells.

2.Raw Data Sheet:
Input your actual operational data in the yellow cells.

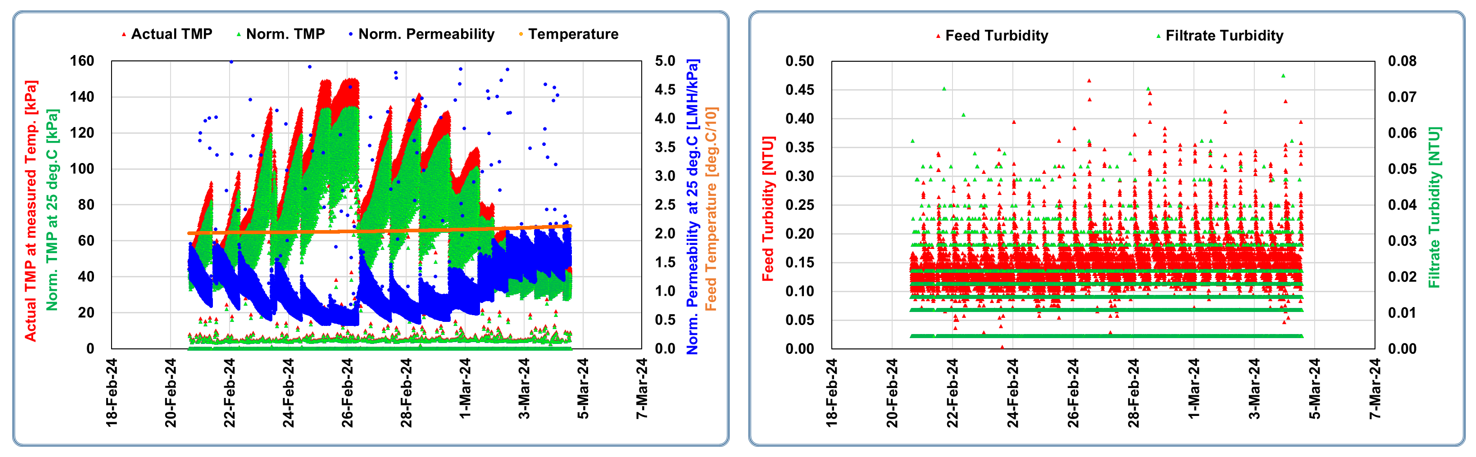

3.Graph Sheet:
Graphs of normalized operational conditions will be automatically generated.
These graphs are editable. If the amount of data is large, adjust reference ranges and add calculated rows in “Normalization” worksheets.

Disclaimer

  • The use of this tool and any related materials is at the sole responsibility of the user. TORAY makes no warranties, express or implied, regarding the accuracy, precision, reliability, or currency of the information contained herein.
  • This tool is intended to be used at the discretion and under the responsibility of technically skilled personnel. TORAY shall not be liable for any damages resulting from the use or inability to use this tool.
  • It is the sole responsibility of the user to take appropriate measures against fouling, scaling, and chemical degradation of the Toray UF products referenced in this tool.
    Furthermore, when using water treatment systems incorporating the referenced Toray UF products, it is the user's responsibility to consider factors such as piping and valve pressure loss, feed water pump pressure, and back pressure on the filtrate side.
